Overview:

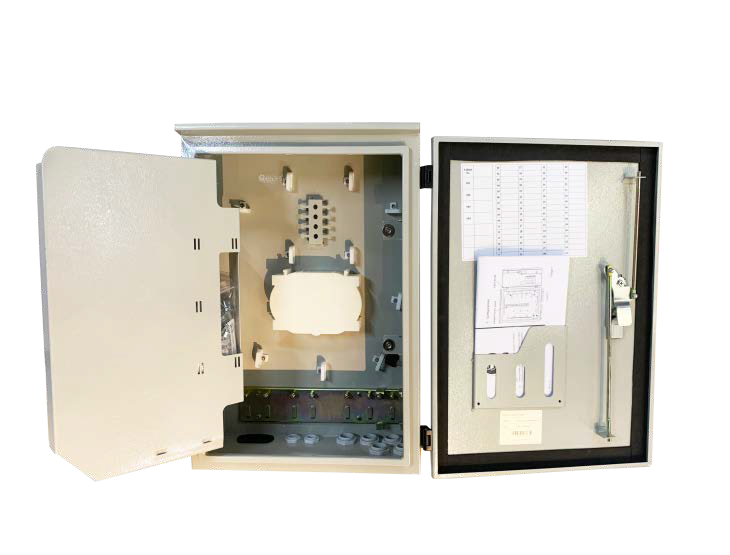

Outdoor Subscriber Box are designed primarily for optical connections, they manage  and protect optical connection points such as optical welds, optical welding wires, optical connectors (adapters), optical jumper wires, a number of devices included such as optical splitters and photoelectric converters. It can be used to hang on walls, hang on poles, indoors or outdoors

Features

1. Subscriber cabinets are capable of installing splitters, adapters, welding trays and subscriber wires
2. The shell is made from painted steel powder coated, rust resistant
3. The distance between the two stainless steel belt clamps ≥ 105 mm
4. Light gray color, lumpy paint to TCVN 2097: 1993 standard, shell thickness ≥1.2mm
5. Inside cabinet has document as customer information table, manuals ...
6. Grounding is located on the cabinet body
7. Optical cables in / out, pigtail, tubes loose in ODF are firmly fixed, ensuring bend radius> 3cm
8. and not broken, folded during construction
9. Aesthetic design, convenient opening and closing mechanism
10. Optical splitter can install: 1x32, 1x64

• Capable of installing fast connectors

• Structure:

• Design:
  • Covered cabinets are seamlessly welded to protect against water and dust
  • Design of Rotating Panel in cabinet with adapter
  • There mechanism to fix cable in / out, fix splitter firmly
  • Design wall hanging by 04 sure bolts or hanging columns with steel straps
• Cable inlet structure:
  • Support 01 input branch designed cables according to the structure

• Mid-Span access

• Supports two output cables extending branch
• Optical fiber is fixed by tightening steel belt
• Central bearing yarn is fixed by screw
• Cable outlet structure
  • Optical cable is fixed by steel clamp
  • Central bearing yarn is fixed by screw
  • There is a fixed position of FRP 2 x 3 mm subscription cable
  • Support 16 subscription cables for 16 ports
  • There are dust-proof heads
• Panel rotating structure
  • The rotation panel is set to open rotation angle 1200
  • The adapters are flap in the same direction
  • Adapter Panel bar are numbered
  • 01 Panel with 72 SC / APC adapters installed for 64Fo cabinets
  • The adapter panel is tilted 300 to avoid direct laser reflection into the user's eyes
• Lock and door cabinets:
  • 3-point locking mechanism
  • The lock has a lid, automatically closes when pulling out the key to prevent water
  • The design cabinet has U-shaped edge and has high quality rubber washer, no tearing,broken when stretching
• The cabinet door has a seamless design, not cut to create a slot to catch the cabinet hinge
• Hinge made of aluminum alloy, anti-rust
