16F Outdoor Subscriber Box

        Overview:

Outdoor Subscriber Box are designed primarily for optical connections, they manage  and protect optical connection points such as optical welds, optical welding wires, optical connectors (adapters), optical jumper wires, a number of devices included such as optical splitters and photoelectric converters. It can be used to hang on walls, hang on poles, indoors or outdoors.

Application:

• Manage and protect fiber optic system
• Fiber to the home (FTTH)
• CATV

         Features:

• Subscriber cabinets are capable of installing splitters, adapters, welding trays and subscriber wires
• The shell is made from painted steel powder coated, rust resistant
• The distance between the two stainless steel belt clamps ≥ 105 mm
• Light gray color, lumpy paint to TCVN 2097: 1993 standard, shell thickness ≥1.2mm
• Inside cabinet has document as customer information table, manuals ...
• Grounding is located on the cabinet body
• Optical cables in / out, pigtail, tubes loose in ODF are firmly fixed, ensuring bend radius> 3cm

          and not broken, folded during construction

• Aesthetic design, convenient opening and closing mechanism
• Optical splitter can install: 1x8, 1x16
• Capable of installing fast connectors

       Structure:

• Design:
  • Covered cabinets are seamlessly welded to protect against water and dust
  • Design of Rotating Panel in cabinet with Splitter and adapter
  • There mechanism to fix cable in / out, fix splitter firmly
  • Design wall hanging by 04 sure bolts or hanging columns with steel straps
• Cable inlet structure:
  • Support 01 input branch designed cables according to the structureMid-Span access
  • Supports two output cables extending branch
  • Optical fiber is fixed by tightening steel belt
  • Central bearing yarn is fixed by screw
• Cable outlet structure
  • Optical cable is fixed by steel clamp
  • Central bearing yarn is fixed by screw
  • There is a fixed position of FRP 2 x 3 mm subscription cable
  • Support 16 subscription cables for 16 ports
  • There are dust-proof heads
• Panel rotating structure
  • The rotation panel is set to open rotation angle 1200
  • The adapters are flap in the same direction
  • Adapter Panel bar are numbered
  • 01 Panel with 20 SC / APC adapters installed for 16Fo cabinets
  • The adapter panel is tilted 300 to avoid direct laser reflection into the user's eyes
• Lock and door cabinets:
  • 3-point locking mechanism
  • The lock has a lid, automatically closes when pulling out the key to prevent water
  • The design cabinet has U-shaped edge and has high quality rubber washer, no tearing,broken when stretching
  • The cabinet door has a seamless design, not cut to create a slot to catch the cabinet hinge
  • Hinge made of aluminum alloy, anti-rust

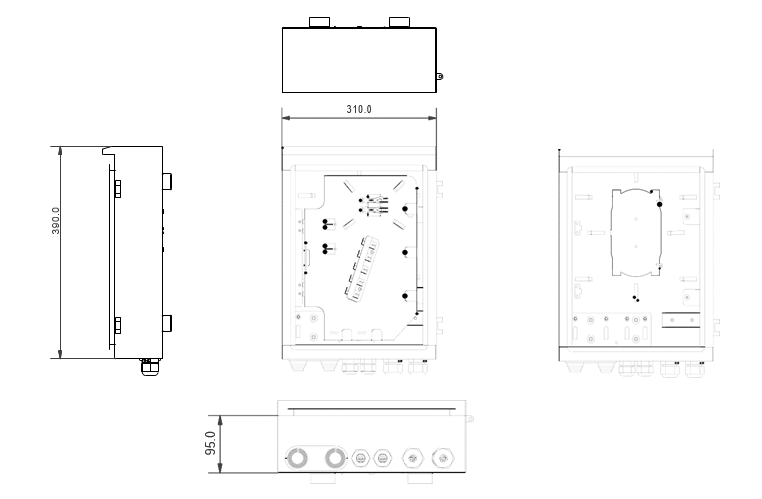

      Specifications:
