Fiber Optic Cross Connect Cabinet

Overview:

Products ODF-OB- 96 is used to protect, distribute and manage information and communication system using optical fiber. The optical connection points, system of fiber optic cable telecommunications center, the office will greatly ease the management and distribution of each small module. With a simple interface for ease of use, which helps network managers save time in the maintenance system for customers.

Application:

• FTTH
• Checking devices
• CATV
• Metro
• Passive optical network(PON)
• Gigabit passive optical network (GPON)
• Optical network equipment
• Local area network (LAN)
• High-speed transmission system

Features:

• Cabinets can be used indoors or outdoors
• Housing made of steel, powder coated, strong structure
• Cabinets are capable of installing splitters, adapters, welding trays and subscriber wires
• Light gray color, lumpy paint to TCVN 2097: 1993 standard, shell thickness ≥1.2mm
• Inside cabinet has document as customer information table, manuals ...
• Grounding is located on the cabinet body
• Optical cables in / out, pigtail, tubes loose in ODF are firmly fixed, ensuring bend radius> 3cm and not broken, folded during construction
• Optical splitter can install: 1x8, 1x16, 1x32, 1x64
• Capable of installing fast connectors
• The adapter mounted on the panel must be designed at a 45 degree angle, ensuring the bend radius of the fiber and not emitting laser source directly into the user's eyes.
• with full cable fixing and reinforcing wire

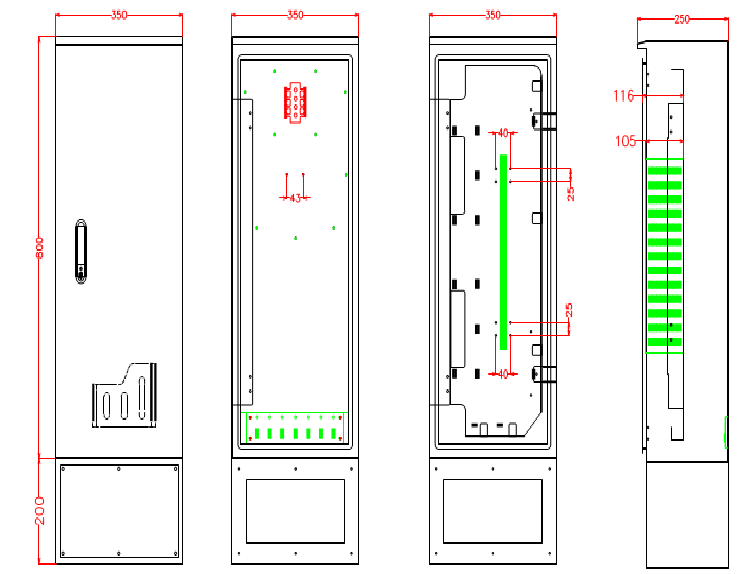

Specefications:
