Tủ Phối Quang Tập Tring 960 FO

Overview:

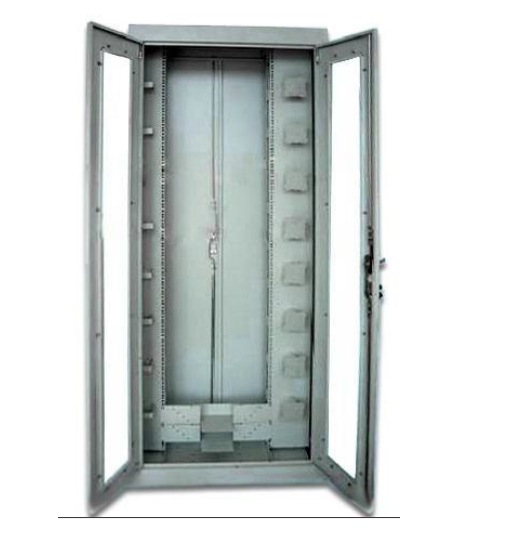

Products ODF-IR-960 is used to protect, distribute and manage information and communication system using optical fiber. The optical connection points, system of fiber optic cable telecommunications center, the office will greatly ease the management and distribution of each small module. ODF-IR-960 can be upgraded up to 960- capacity optical path. With a simple interface for ease of use, which helps network managers save time in the maintenance system for customers

Application:
 Telecommunications subscriber loop
 Fiber to the home (FTTH)
 LAN/WAN
 CATV

Main features:
This frame is made of top quality steel and deformed aluminum alloy and treated withgalvanizing, oxidation and electrostatic plastic spraying. The frame has solid structure and pleasing appearance.
Fully-closed structure with the advantages of good performance of dust-proof, pleasingand neat appearance.
Enough space for fiber distribution and storage space and very easy for installation andoperations.
Fully front side operation, convenient for maintenances.
Minimum bend radius is controlled of 40mm.
The optional cable inlet system is installed on the top of the frame which has excellentperformances for fixing the incoming cables.
Cables can be entered to the frame either from the top or the bottom of the frame subjectto different requirements.
This frame is suitable for both bundle (loose) cables and ribbon type cables.
Reliable cable fixture cover and earth protection device provided.
Standard size, light weight and reasonable structure

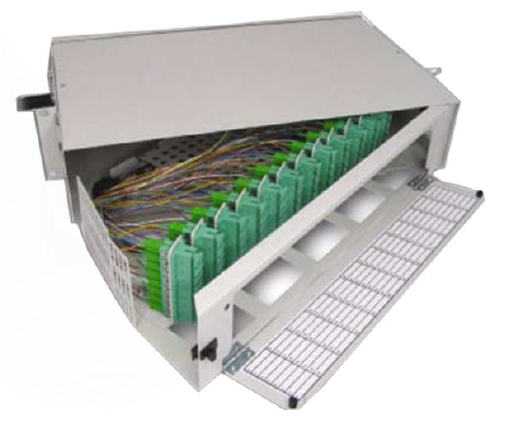

Various panel plate to fit different adapter interface
Easy for management and operation.
