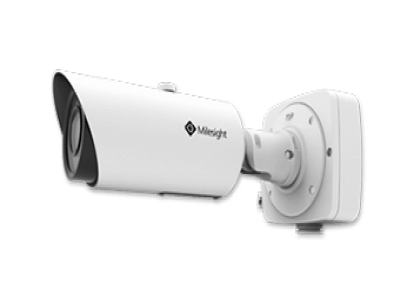

Camera MS-C2962-RFAPB

Mã sản phẩm:  Camera Milesight MS-C2962-RFAPB

Motorized Pro Bullet network Camera,poe ip camera outdoor

H.265+ Motorized Pro Bullet Network Camera

Chuyên dùng để nhận diện khuôn mặt và quan sát

2/5/8MP · 120fps · 3 in 1 Super WDR Pro up to 140dB · 0.001Lux Starlight · 60m/100m IR Distance · Smart IR II Technology · P-Iris · IP67 & IK10 · PTFE Membrane · Integrated Cable Management · Integrated Junction Box


Camera

Name5MP H.265 Motorized Pro Bullet Network Camera

Image Sensor1/2.8" Progressive Scan CMOS

Min. IlluminationColor: 0.005Lux @F1.2, B/W: 0Lux with IR on

WDR120dB Super WDR

Shutter Time1/100000s∼1s

Day&NightICR Filter Auto Switch

IR DistanceUp to 60m(3.0∼10.5mm/2.7∼13.5mm)/ 100m(7∼22mm)

S/N>55dB

Lens

LensMotorized 3∼10.5mm/2.7∼13.5mm/7∼22mm@F1.4, P-Iris(Optional)

Field of ViewH90°∼H31°/D114°∼D38°/V67°∼V23°(3∼10.5mm), H89°∼H30°/D111°∼D37°/V66°∼V22°(2.7∼13.5mm), H37°∼H15°/D47°∼D19°/V28°∼V11°(7∼22mm)

MountΦ14

Focus ControlAuto/Manual

Iris Control
(Optional for I Series)
Auto/Manual

Video

Max. Image Resolution2592x1944

Frame Rate30fps@(2592x1944), 45fps@(2048x1536), 60fps@(1920x1080)(Optional for H Series), 20fps@(2592x1944), 30fps@(2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)

Secondary Stream30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)

Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)

Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG

Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)

Image SettingsSaturation/Brightness/Contrast/Sharpness

Web AccessSupport IE/Firefox/Chrome/Safari Browser

Audio

Audio CompressionG.711/AAC/G.722/G.726

Audio I/O1/1

Network

Communication1*RJ45 10M/100M Ethernet Port

Network StorageNAS(Support NFS, SMB/CIFS)

Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

System

Alarm I/O1/1

StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G

Advanced FunctionPrivacy Masking, BLC, HLC, 2D DNR, 3D DNR, ROI, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark

SIP/VoIP SupportYes, Voice&Video-over-IP

Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.

Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.

Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed

System CompatibilityONVIF Profile G & Q & S & T

General

Working Temperature-40℃∼60℃

Working Humidity0∼90%(Non-condensing)

Power SupplyPoE(802.3af)/DC 12V±10%

Power Consumption5W MAX, 9W MAX(With IR on)

Weather ProofUp to IP67-rated for weather-resistant performance

HousingVandal-proof IK10-rated metal housing (Optional)

Dimensions134mmX126mmX285mm

Weight1080g

Warranty3/5 Years
