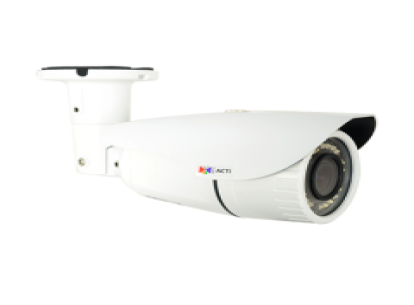

| Product Type | Zoom Bullet |
| Maximum Resolution | 2MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.8 " |
| Effective Pixels | 1945(H) X 1097(V) (2.13 MP) |
| Day / Night | Yes |
| Low Light Sensitivity | Extreme |
| Minimum Illumination | Color: 0.05 lux at F1.4; B/W 0.005 lux at F1.4 (AGC on) |
| Color to B/W Switch | ISP based switch, configurable |
| Mechanical IR Cut Filter | Yes |
| IR Sensitivity Range | 700-1150nm |
| IR LED | Adaptive IR LED x 22 (850 nm) |
| IR Working Distance | 30m |
| Electronic Shutter | 1/5-1/64000second (manual mode); 1/5-1/64000second (auto mode) |
| Horizontal Resolution (TV Lines) | 1100 TVL |
| S/N Ratio | 56 dB |
Lens
| Focal Length | Zoom, f2.8-12mm |
| Aperture | F1.4-F2.8 |
| Zoom Ratio | 4.3x optical |
| Zoom Application | Camera Installation |
| Iris | P-Iris |
| Focus | Auto focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 88° - 25° |
| Vertical Viewing Angle | 57° - 19° |
PTZ
| Pan, Tilt or Zoom protocol | Pelco-D, Pelco-P, ACTi URL command |
Video
| Compression | H.265, H.264 (Baseline/ Main/ High profile), MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 640 x 480 30 fps at 320 x 240 |
| Multi-Streaming | Simultaneous dual streams based on two configurations |
| Bit Rate | 28Kbps - 12Mbps (per stream) |
| Bit Rate Mode | Constant, Variable |
| Wide Dynamic Range | Extreme WDR (142 dB) |
| Image Enhancement | Digital Image Stabilizer, Defogging |
| Digital Noise Reduction | 2D + 3D DNR |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| On-Screen Graphics | Yes |
| Built-in Analytics | Tampering Detection |
| VMS-based Analytics | Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, Direction Detection, Automatic License Plate Recognition, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
| Image Orientation | Flip, Mirror, Rotation |
Audio
| Audio Type | 2-way, Mic-in, Line-in, Line-out |
| Audio Compression | 8 kHz, Mono, G.711 |
Network
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP |
| Ethernet Port | 1 x RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, Anonymous login |
Event
| Event Trigger | Video motion detection (3 regions), External device through digital input, Sound detection, Tampering detection |
| Event Response | Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification, Save video to local storage, Upload video to NVR server, Upload video or snapshot to FTP server, Activate external device through digital output |
Integration
| Unified Solution | Fully compatible with ACTi software |
| GPS Position | Manual setting |
| ONVIF Compliant | Yes, Profile S |
| Web Browser | IE 11 |
| Auto Firmware Upgrade | Yes |
Interface
| Audio Interface | 3.5mm Phone Jack |
| Analog Video Output | 1 x CVBS, BNC connector |
| Digital Input/Output | 1/1 (Cable with Terminal block) |
General
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 10 W (PoE, IR on), 8 W (DC, IR on) |
| Weight | 812.5g (1.79lb) |
| Dimensions | (Ø x L): 80mm x 258.3mm (3.149" x 10.169") |
| Environmental Casing | Weatherproof (IP66), Vandal proof metal casing (IK10) |
| Bundled Accessories | Integrated bracket |
| Mount Type | Integrated Bracket, Pole Mount |
| Starting Temperature | -20°C ~ 50°C (-4°F ~ 122°F) |
| Operating Temperature | -30°C ~ 50°C (-22°F ~ 122°F) |
| Operating Humidity | 20% - 80% RH |
| Approvals | CE, FCC, IP66, IK10 (metal casing), NEMA 4X |
| Warranty | 3 Year(s) |
| Extended Warranty | 2 Year(s) |
